RF Signal Generator Module Dual Programmable Output Signal Source with 23.5MHz to 6000MHz Frequency Range and Integer and Fractional N Mode for Wireless Infrastructure and

Item Type: Signal Source ModuleProduct Material: PlasticModule Model: MAX2870Module Type: Broadband Phase Locked Loop Frequency SourceModule Power Supply: DC-5VOperating Temperature Range: -40℃ - +85℃The Module is an External Reference Clock Range: 10MHz-200MHzModule Communication Protocol: SPI ProtocolInternal Reference Frequency of the Module: 25MHzPhase Noise: the Phase Noise of Each Frequency Point is DifferentModule Output Interface: SMAModule Output Channel: Single Ended Differential ChannelModule Output Signal Coupling: Rf CouplingModule Output Impedance: 50ΩModule Applications: Wireless Infrastructure, Secure Radio, Satellite Communications, Wireless Lan/cable Television, Clock Pulse Oscillation, Test and MeasurementModule Size: Approx.48.3 x 36.4 x 8.4mm / 1.9 x 1.4 x 0.3inModule Interface Type: SMA Signal Output and External Clock Input, XH6 x 1p-2.54mm InterfacePackage List：1 x Signal Source ModuleNote:This module provides a copy of the STM32F10x‑M3 routine, which can quickly output the corresponding frequency with the routine.Remember to supply the power correctly, do not reverse the connection, and the power input is higher than 5.5V.Phase‑locked loop is AC coupled output. Please understand that DC‑BLOCK is required for RF instrument interface to avoid burning expensive instruments.This module and the required drive signal are all at the same end, and only one end is required when in use.This module program is very convenient to transplant, if you don’t understand the program, please buy it carefully.

• Voltage Controlled Oscillator: Features manual or automatic VCO selection from 3000MHz to 6000MHz with integrated hardware and software shutdown control.
• Broad Frequency Coverage: Utilizes an output binary buffer and divider to provide settings for 1, 2, 4, 8, 16, 32, 64, and 128 with a total range of 23.5MHz to 6000MHz.
• Integer and Fractional N Mode: Features a PFD with 105MHz in integer N mode and 50MHz in sub N mode and supports a reference frequency up to 200MHz.

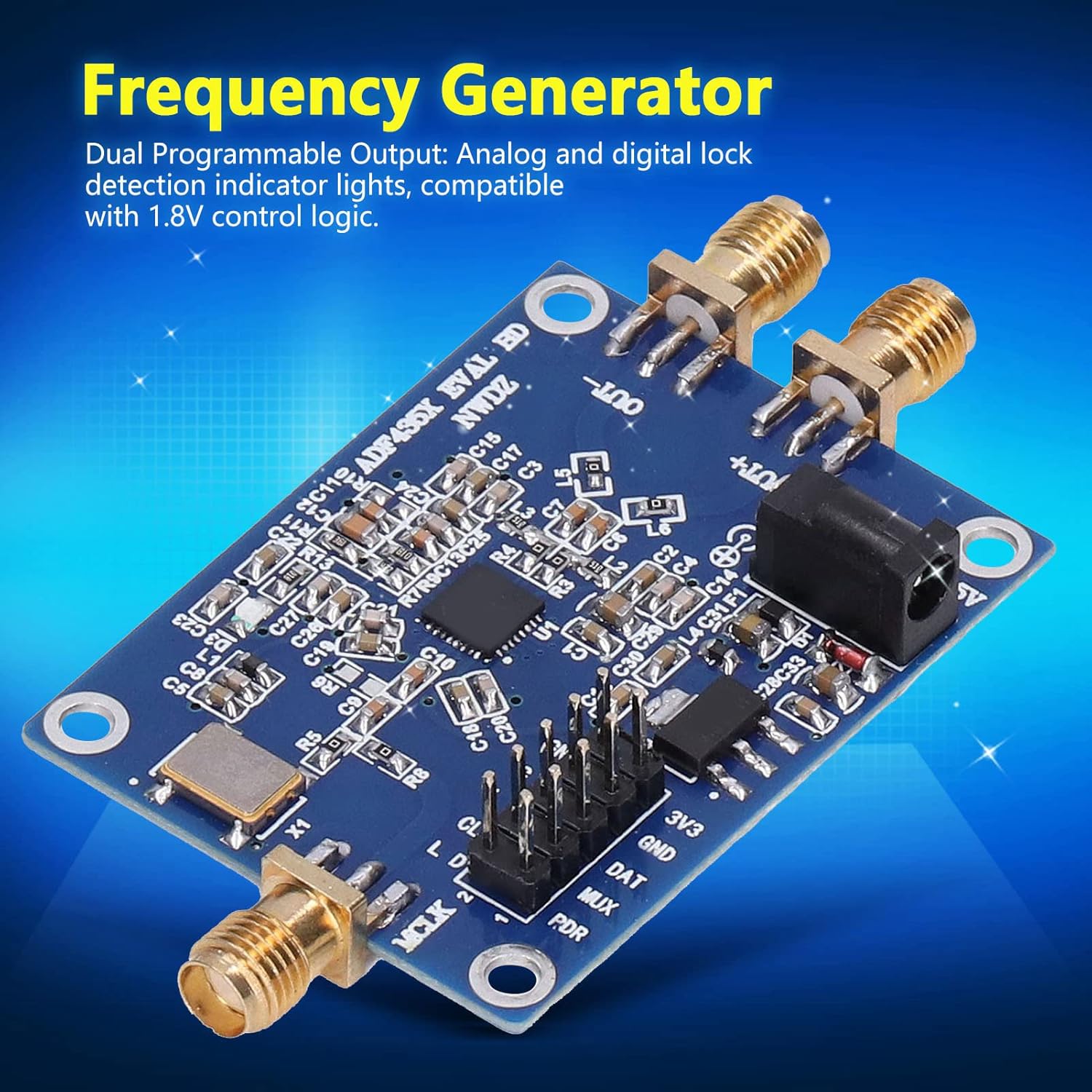

• Dual Programmable Output: Includes analog and digital lock detection indicator lights and is compatible with 1.8V control logic for system integration.
• Technical Module Applications: Suitable for use in wireless infrastructure, satellite communications, wireless LAN, cable television, clock pulse oscillation, and test and measurement.
