DC1500V 32Amp Solar Disconnect Switch Black Isolator Solar Switch with 2MC4 8KV Waterproof IP66 Enclosure for Rooftop Solar Systems 1-in 1-Out
Product details
| Management number | 214765471 | Release Date | 2026/04/12 | List Price | $17.86 | Model Number | 214765471 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Ui: DC1500V] The DC isolator solar switch is designed to quickly and safely disconnect DC power up to 32A 1500V when installing or maintaining PV systems. Compliant with IEC60947-1&3 standards, it is the first choice for repair, maintenance, inspection and installation. (rated working voltage 1200V, rated insulation voltage 1500V)
- [4-Poles] Specification Met: CB, CE, TUV, ISO 9001, RoHS. The PV switch disconnector has 4 separate circuits of 32 amps each, 64A max. for 2 circuits for high work safety. And the solar disconnect switch has a padlocked handle that locks in the closed position.

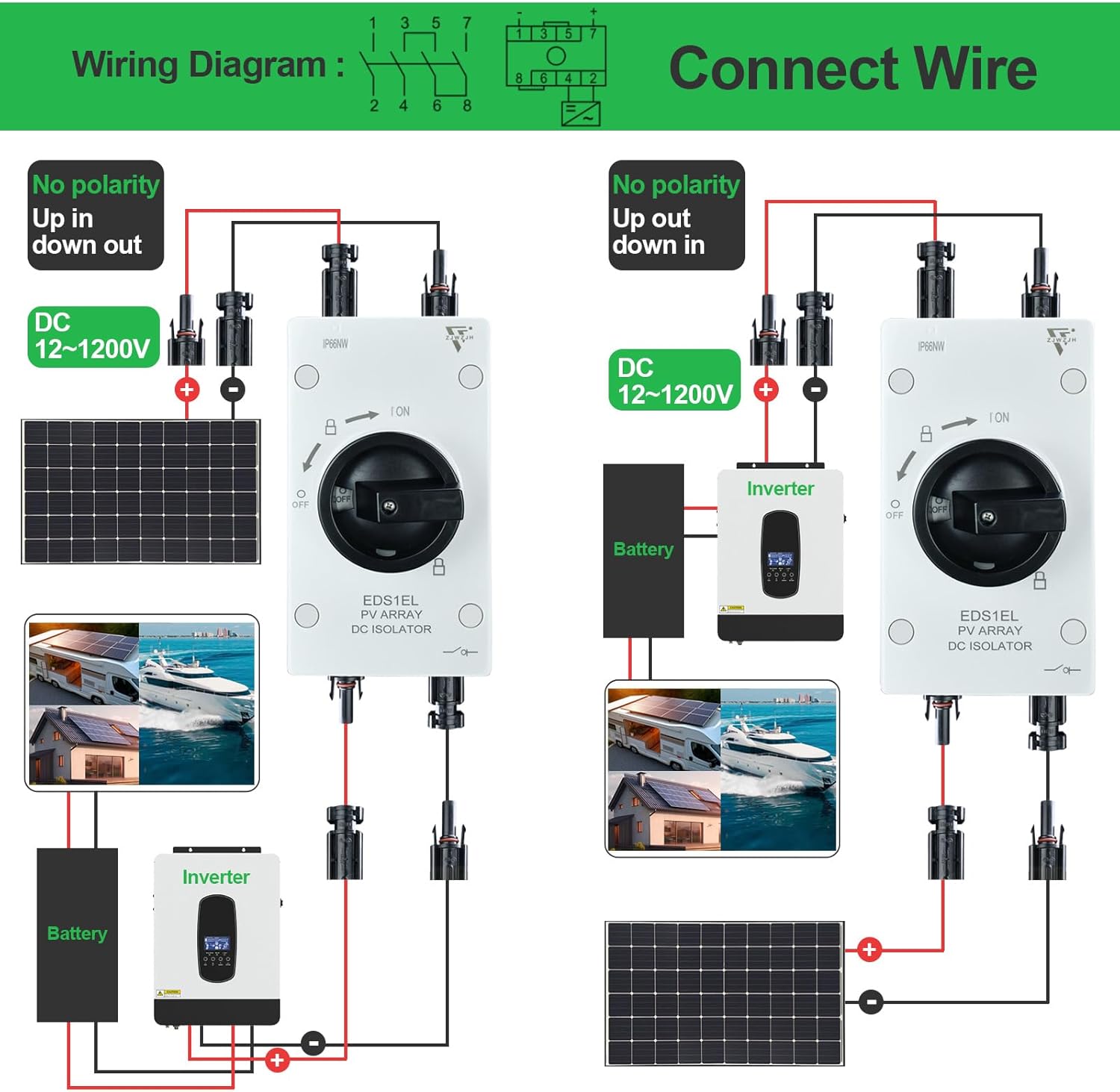

- [1-In 1-Out] 1 string; 1 in,1 out. QUICK & EASY INSTALLATION: Pre-wired with solar connectors and including mounting screws, solar isolator disconnect switch allows for fast, hassle-free connections to solar panels or inverters, saving time and effort.
- [RELIABLE & DURABLE] ZJWZJH's solar pv isolator switches are made of high quality PC material, It has the advantages of UV-proof, flame retardant, water and dust prevention (IP66), Cold and heat protection (-40℉~+185℉), environmental aging and corrosion resistance, and long service life, perfect for outdoor and indoor installation.
- [WIDE APPLICATION] Whether it's solar panels, solar charge controllers, solar inverters or solar modules, you can integrate our DC disconnect switches to connect and control them all. It is ideal for private and commercial PV networks and perfect for your caravan or boat solar system.
| Color | Black 2MC4 |
|---|---|
| Model | EDS1-4SR-K2M |
| Terminal | Screw |
| Brand Name | ZJWZJH |
| Unit Count | 1.0 Count |
| Item Weight | 1.4 Pounds |
| Switch Type | Disconnect Switch |
| Circuit Type | 4-way |
| Contact Type | 4 Poles |
| Manufacturer | ZJWZJH |
| Actuator Type | Rotary |
| Material Type | Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 32 Amps |
| Operation Mode | OFF-ON |
| Controller Type | solar disconnect switch |
| Item Dimensions | 9.82 x 3.86 x 4.33 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 1500 Volts (DC) |
| Specification Met | CB, CE, ISO 9001, RoHS, TUV |
| Included Components | 1x Solar Disconnect Switch; 4x connectors;4x Expansiontubes;1x Wrench |
| Number of Positions | 4 |
| Warranty Description | If you have any questions, please contact us. |
| Upper Temperature Rating | 85 Degrees Celsius |
| International Protection Rating | IP66 |
