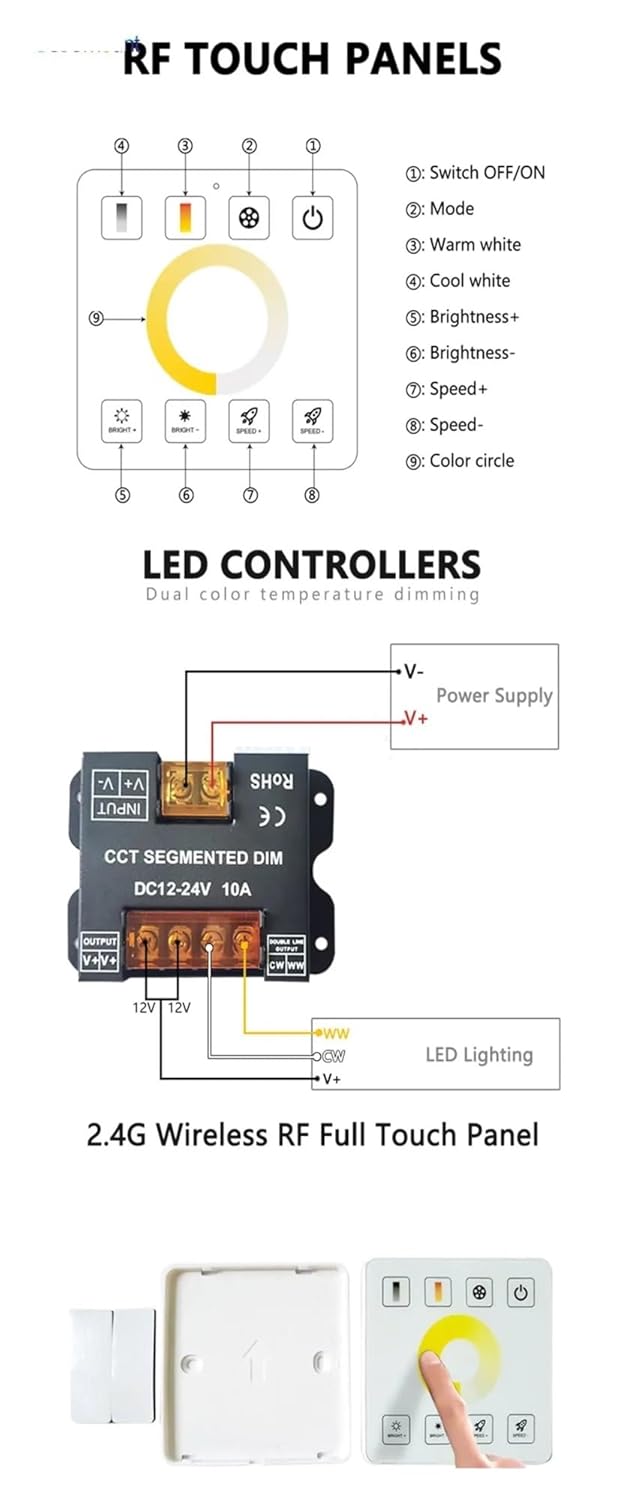

2.4G Monochrome CCT RGB RGBW RGBCCT LED Light Strip Controller DC5V 12V 24V Light Strip 86 Type Touch Panel Switch dimming Control(CCT Controller)
Product details
| Management number | 213662756 | Release Date | 2026/04/12 | List Price | $36.00 | Model Number | 213662756 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Outlet & Switch CombosTechnical parameters:Monochrome touch screen controllerWorking power supply: DC 5~24VWorking temperature: -20℃-60℃Output current/power: 15A*2CH,<;150W, 12V360W, 24V720WWeight: 140gProduct size: L85*W62*H35mmPacking size: L94*W94*H42mmColor temperature touch screen controllerWorking power supply: DC 12~24VWorking temperature: -20℃-60℃Output current/power: 5A*2CH,<;120W, 24V240WWeight: 140gProduct size: length 85*width 62*height 35mmPacking size: L94*W94*H42mmPacking size: L94*W94*H42mmRGB touch screen controllerWorking power supply: DC 5~24VWorking temperature: -20℃-60℃Output current/power: 10A*3CH,<;150W, 12V360W, 24V720WWeight: 140gProduct size: length 85*width 62*height 35mmPacking size: L94*W94*H42mmRGBW touch screen controllerWorking temperature: -20℃-60℃Power supply voltage: DC 5V~24VOutput: 5 COMS drain outputsConnection method: common anode<;1W<;10A (per channel)<;250W, 12V600W, 24V1200WRemote control size: L86*W86*H12mmController size: L103*W62*H22mmNet weight: 170 gramsGross weight: 180 gramsRGBWC (RGB+CCT) touch screen controllerWorking temperature: -20℃-60℃Power supply voltage: DC 5V~24VOutput: 5 COMS drain outputsConnection method: common anode<;1W<;10A (per channel)<;250W, 12V600W, 24V1200WRemote control size: L86*W86*H12mmController size: L103*W62*H22mmNet weight: 170 gramsGross weight: 180 gramsPackage Included:As an option!=========Features: 86 type touch screenModel: Monochrome/CCT/RGB/RGBW/RGBWC 2.4G LED Controller KitOscillation frequency: .Connection method: common anodeCertification: CCC, CE, ULVoltage: 12-24VMaterial: Iron shell/ABSPower: 10A/30A/40A/50APower supply: DCmaximum. Load power: 10A/30A/40A/50ARemote control distance: 10mApplicable lights: LED light stripControl method: 2.4G controlOrigin: Mainland ChinaProduct Type: RGB ControllerMonochrome: 2.4G monochrome LED controllerCCT: 2.4G color temperature LED controllerRGB: 2.4G RGB LED controllerRGBW: 2.4G RGBW LED controllerRGBWC: 2.4G RGBWC(RGB+CCT) LED controller
- Outlet & Switch Combos
| Color | One Color |
|---|---|
| Model | QTIWYXYS |
| Terminal | Blade |
| Brand Name | QTIWYXYS |
| Unit Count | 1.0 Count |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | QTIWYXYS |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 1 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 4.72 x 4.72 x 4.72 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
